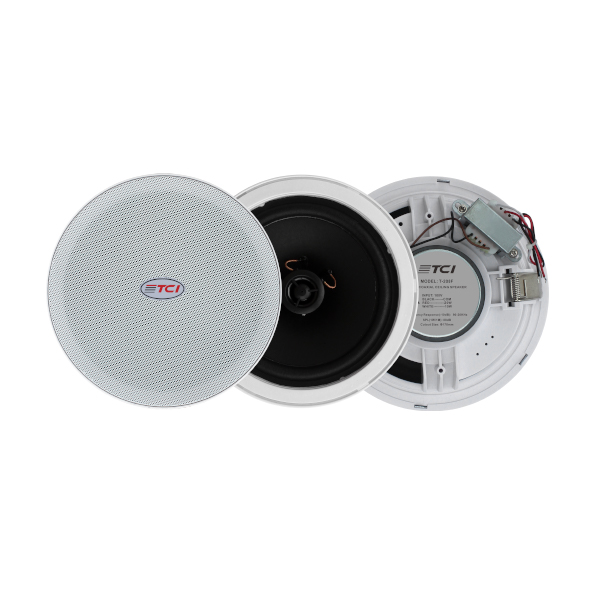

2-Way Coaxial Frameless Ceiling Speaker 20W
- Power: 20W RMS with 70V/100V transformer & 8Ω low-Z connection.
- Drivers: 6.5” woofer cone with coaxial 1” silk dome tweeter.
- Cutout Size: Ø205 mm mounting hole diameter.
- Acoustics: 100 Hz – 20 kHz frequency response with 93 dB (±3dB) sensitivity.
- Design: Architectural frameless metal grille.
- Installation: Quick-fit spring-loaded tension clamps
The TCI-208F is a professional 20W 2-way coaxial ceiling speaker engineered to deliver clear background music and high-intelligibility public address audio for commercial spaces. Featuring an ultra-slim frameless magnetic metal grille, a 6.5-inch woofer, and a coaxial 1-inch silk dome tweeter, it integrates seamlessly into contemporary interior ceiling designs while maintaining balanced acoustic output.
Key Features & System Highlights
- 2-Way Coaxial Driver Array: Combines a 6.5-inch mid-bass woofer with a coaxially mounted 1-inch silk dome tweeter for smooth high-frequency dispersion and full-range audio clarity.
- Frameless Magnetic Mesh Grille: Features a rimless magnetic metal grille that attaches flush to the mounting frame, delivering a clean architectural aesthetic.
- 70V/100V & 8Ω Transformer Matching: Equipped with an integrated line matching transformer supporting 70V and 100V distributed speaker systems alongside a low-impedance 8Ω direct mode.
- Durable Construction: Manufactured with a high-grade ABS plastic housing and robust metal mesh grille for long-term operational durability.
- Rapid In-Ceiling Installation: Designed with spring-loaded dog-ear clamps for quick, tool-free locking into gypsum board or suspended ceiling tiles.
|

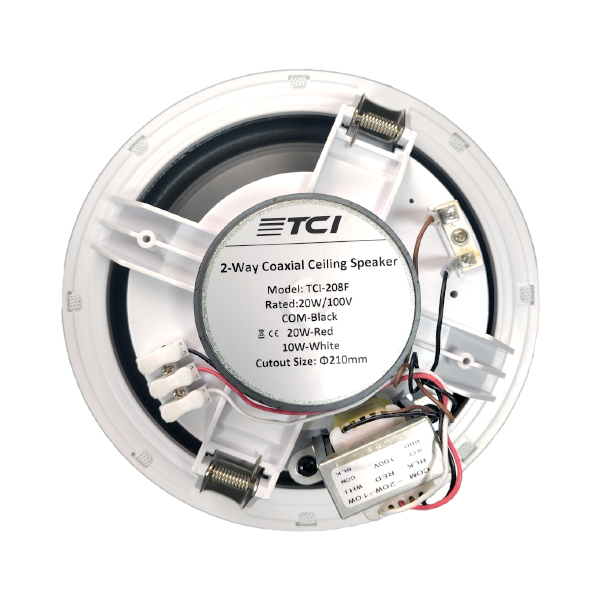

Model |
TCI-208F |
|
Line Input |
100V |
|
Power Taps |
BLACK-COM, RED-20W, WHITE-10W |
|
Impedance |
Red:500Ω, White:1KΩ |
|
SPL(1W/1M) |
93 dB |
|
Freq. Response |
70-20KHz |
|
Woofer Driver |
8"*1 |
|
Tweeter Driver |
1"*1 |
|
Material |
ABS enclosure, metal grille and clamps |
|
Cutout Size |
Φ 210mm |
|
Dimension |
Φ 232*92mm |
|
Finish |
White |
Suitable Applications
Technical Specifications for Tender
Supply and installation of a 2-way coaxial ceiling speaker featuring a 6.5” woofer, 1” coaxial silk dome tweeter, and a frameless magnetic metal grille.
Key Requirements:
- Acoustics & Power: Rated output power of 20W RMS, frequency response of 100 Hz – 20 kHz, and sensitivity of 93 dB (±3dB).
- Line Transformer & Mounting: Built-in multi-tap transformer for 70V/100V line operation and 8Ω bypass. Mounting cutout diameter shall be Ø205 mm with quick-mount spring clamps.
- Compliance: CE standards compliant.
Approved Model: TCI TCI-208F or engineer-approved equivalent
